Rear Axle (5 hole)

Rear Axle (5 hole)

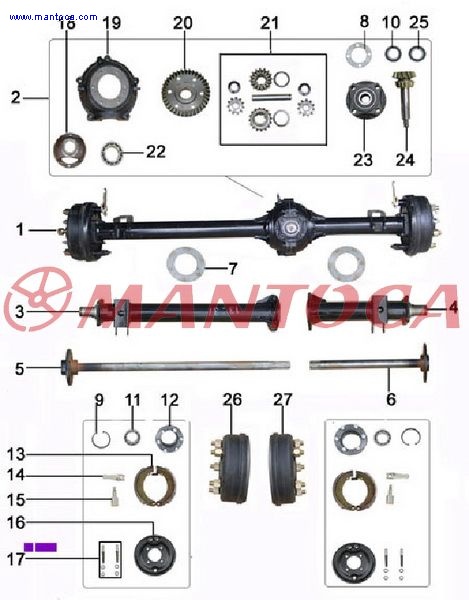

Product name : Rear Axle (5 hole)
Item : F16
Details :

No Parts No 中文名称 Description
1 F1601 后桥总成 Rear Bridge (5-Holes)
2 F1602 后包总成 Back Bag Assy
3 F1603 左套管 Bushing Left
4 F1604 右套管 Bushing Right
5 F1605 左半轴 Shaft Left
6 F1606 右半轴 Shaft Right
7 F1607 半轴纸垫 Washer, Shaft
8 F1608 小纸垫 Washer, Bearing seat
9 F1609 孔用弹性垫圈 Spring Gasket
10 F1610 轴承6204-RS Bearing 6204-RS
11 F1611 轴承6007 Bearing 6007
12 F1612 轴承座 Bearing seat, Drum brake
13 F1613 后刹车蹄块 Rear Brake Shoe
14 F1614 后刹车摇臂 Arm, Rear brake
15 F1615 刹车轴 Cam, Rear Brake
16 F1616 刹车盘组件 Brake cover Assy
17 F1617 小轴 Axle of brake shoe
18 F1618 差速壳 differential case
19 F1619 减速箱体 Gear Box
20 F1620 从动齿轮 Driven Gear
21 F1621 齿轮组合 Gear Assy
22 F1622 轴承6008 Bearing 6008
23 F1623 轴座 Bearing Seat
24 F1624 主动齿轮 Driver Gear
25 F1625 轴承30204 Bearing 30204
26 F1626 左刹车鼓总成 Drum Brake Assy,  LH
27 F1627 右刹车鼓总成 Drum Brake Assy, RH
